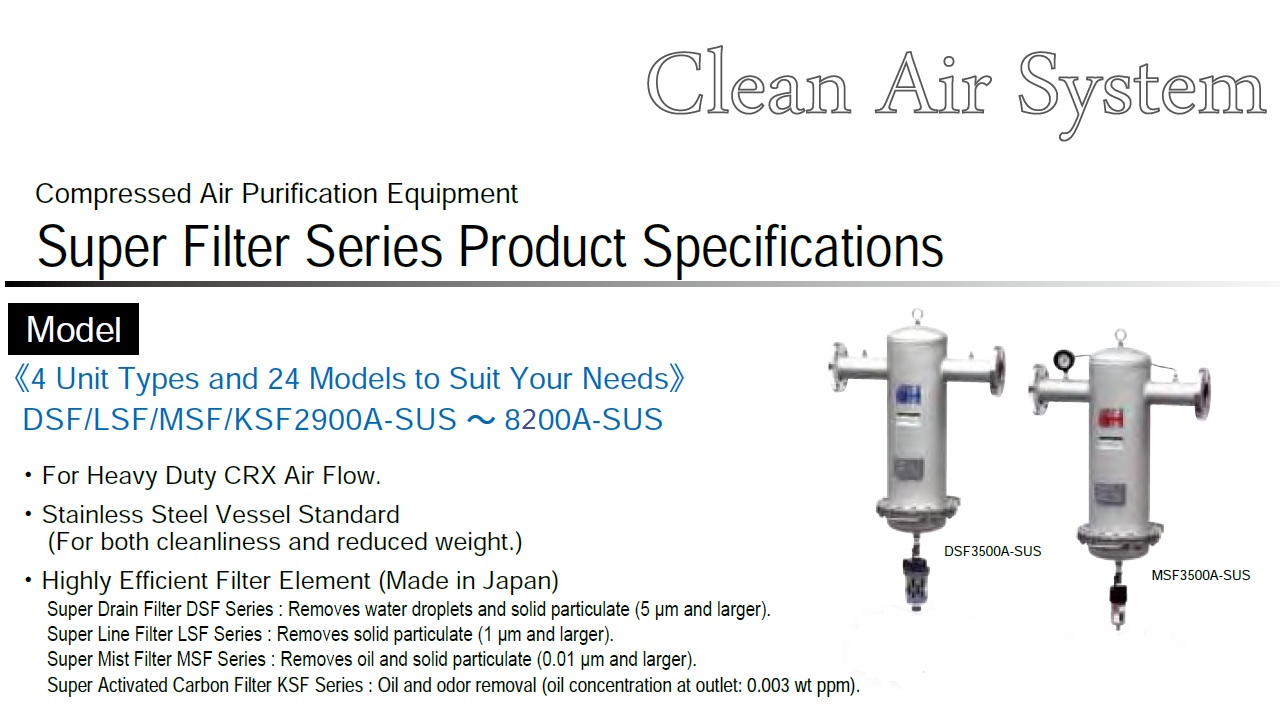

Specifications

Model	LSF/MSF		2900A1-SUS	3500A1-SUS	4100A1-SUS
	DSF/KSF		2900A-SUS	3500A-SUS	4100A-SUS
Air processing capacity (at 0.69 MPa)		? /min	29	35	41
Body and housing			Stainless steel
Operating ranges	Operating ranges	MPa	0.05 ? 0.98（僅 DSF0.2 ～ 0.98）
	Inlet air temperature	℃	5? 60
	Ambient temperature	℃	2? 60
Performance	Filtration		DSF：5μm (Water droplet separation efficiency: 99%)　 LSF：1μm (Filtration efficiency: 99.999%)
			MSF：0.01μm(Filtration efficiency: 99.999%)　 KSF：Adsorption by activated carbon fiber
specifications	Output oil concentration	wt ppm	MSF:0.01、KSF:0.003
	Pressure Loss	MPa	DSF: Initial 0.006、LSF: Initial 0.006、MSF: Initial 0.01?Usual 0.02、KSF: 0.01
When to replace filter element			One year or pressure loss 0.02 MPa for DSF, 0.035 MPa for LSF/MSF, whichever comes first.
Main dimensions	Air connection (flange)		2 1/2B（65A）	3B（80A）
	Dimensions		DSF ：377×590×1012	DSF ：377×590×1169
	(front face × depth × height)		LSF?MSF ：377×590×996	LSF?MSF ：377×590×1153
			KSF ：377×590×828	KSF ：377×590×985
	Mass	kg	DSF?MSF ：27/LSF ：26/KSF ：25	DSF?MSF ：32/LSF ：31/KSF ：30
Element	EDS/ELS/EMS/EKS models		1300	2000
	Quantity		2
Accessories	Auto drain trap		FD-10-A（DSF）　FD2（LSF?MSF）　None with KSF.
	Pressure differential gauge		DGX-50A(Comes standard only with the MSF. Available as an option on other models.)

Model	LSF/MSF		5300A1-SUS	6100A1-SUS	8200A-SUS
	DSF/KSF		5300A-SUS	6100A-SUS
Air processing capacity (at 0.69 MPa)		? /min	53	61	82
Body and housing			Stainless steel
Operating ranges	Operating ranges	MPa	0.05 ? 0.98（僅 DSF0.2 ～ 0.98）
	Inlet air temperature	℃	5? 60
	Ambient temperature	℃	2? 60
Performance	Filtration		DSF：5μm (Water droplet separation efficiency: 99%)　 LSF：1μm (Filtration efficiency: 99.999%)
specifications			MSF：0.01μm(Filtration efficiency: 99.999%)　 KSF：Adsorption by activated carbon fiber
	Output oil concentration	wt ppm	MSF:0.01、KSF:0.003
	Pressure Loss	MPa	DSF: Initial 0.006、LSF: Initial 0.006、MSF: Initial 0.01?Usual 0.02、KSF: 0.01
When to replace filter element			One year or pressure loss 0.02 MPa for DSF, 0.035 MPa for LSF/MSF, whichever comes first
Main dimensions	Air connection (flange)		4B（100A）
	Dimensions		DSF ：442×640×1245		945×1130×1620
	(front face × depth × height)		LSF?MSF ：442×640×1229
			KSF ：442×640×1061
	Mass	kg	DSF?MSF ：48/LSF ：47/KSF ：46		DSF?MSF:122/LSF:120/KSF:118
Element	EDS/ELS/EMS/EKS models		2000
	Quantity		3		4
Accessories	Auto drain trap		FD-10-A（DSF） FD2（LSF?MSF） None with KSF		FD-10-A×2（DSF） FD2×2（LSF?MSF） None with KSF
	Pressure differential gauge		DGX-50A(Comes standard only with the MSF. Available as an option on other models.)		DGX-50A×2(Comes standard only with the MSF. Available as an option on other models.)
	Other		—		Legs, Fixing band for filters and etc. (Assembly required at the site.)
